Solar Structure & Accessories
Bansal Roofing Products Limited (BRPL) is a CRISIL SME 1 Graded and ISO 9001:2015 certified company established in 2008 and proudly listed on the BSE Platform since 2014.
With a state-of-the-art 2,00,000 sq. ft. manufacturing facility in Savli, Vadodara, BRPL specializes in designing, manufacturing, supplying, and exporting a wide range of Pre Engineered Buildings (PEB), Roofing Products, Roll Forming Products, and Structural Solutions.
Our products are trusted across industries for their:
- Robust Design
- Seismic Resistance
- High Wind Tolerance
- Customizable Features
They are widely used in warehouses, showrooms, cold storage facilities, and industrial applications. With 95% in-house production, we ensure quality assurance, timely delivery, and reliable project execution.
Expanding into Renewable Energy Solutions
As India embraces the clean energy revolution, BRPL is proud to contribute by introducing Solar Module Mounting Structures.
Our new product line includes
1. Top Hat Section

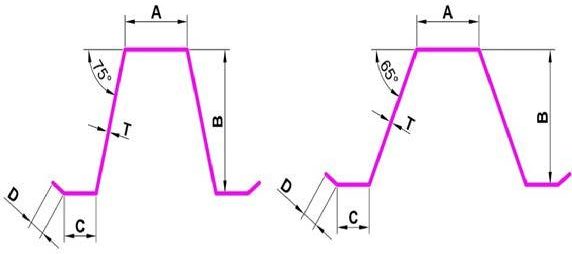

The Hat Profile Channel, also known as the Top Hat Section, is an essential component in modern solar mounting structures. With its distinctive hat-shaped cross-section, it offers an excellent strength-to-weight ratio, making it both efficient and reliable.
Key Features
- High structural rigidity
- Excellent load-bearing capacity
- Easy to install and versatile
- Widely used in PV module mounting structures
Typical Applications
- Solar panel mounting
- Roofing battens
- Cladding support
Available Dimensions
- Top Flange (A): 30 – 90 mm
- Web Size (B): 40 – 150 mm
- Bottom Flange (C): 15 / 20 / 25 / 30 / 35 / 40 mm
- Lip (D): 5 – 12 mm
- Thickness (T): 0.8 to 1.6 mm (Max)

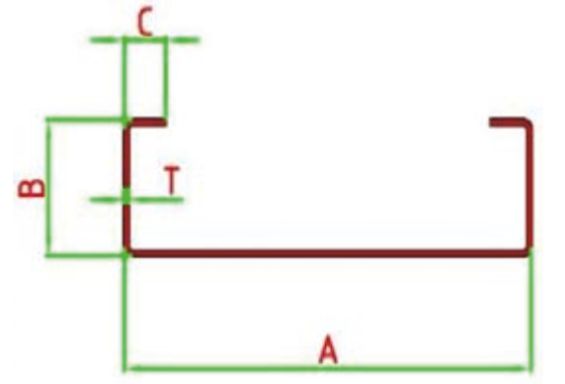

2. C-Channel Section
The C-Channel, named for its distinctive C-shaped cross-section, is a highly versatile structural profile. Known for its excellent load-bearing characteristics, it is widely used in framing applications across industries
Key Features
- Straightforward to fabricate
- Strong in bending and compression
- Lightweight and efficient
Typical Applications
- Purlins and girts
- Structural framing
- Cable trays and racks
Available Dimensions
- Web Size (A): 60 – 250 mm
- Flange Size (B): 30 – 80 mm
- Lip (C): 5 – 12 mm
- Thickness (T): Up to 2.5 mm (Max)
Material Specifications
- Manufactured as per IS-513
- Galvanized as per IS-277
- Cold-formed light gauge steel as per IS-801 and IS-811

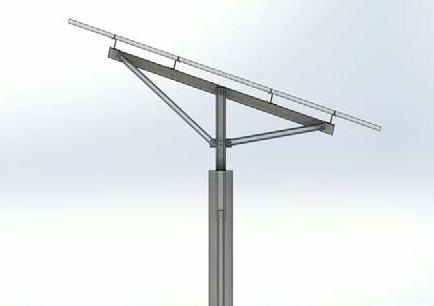

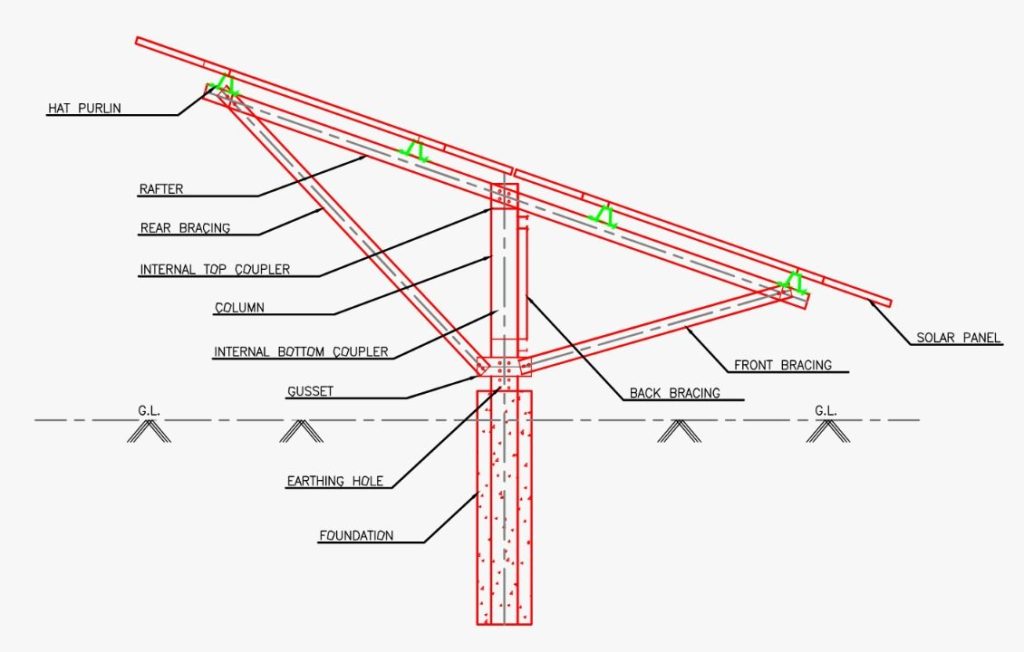

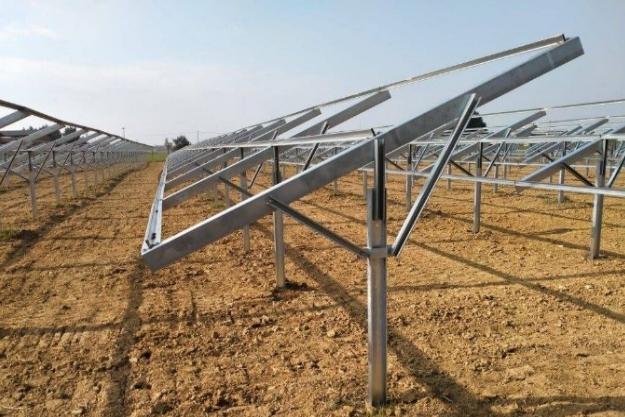

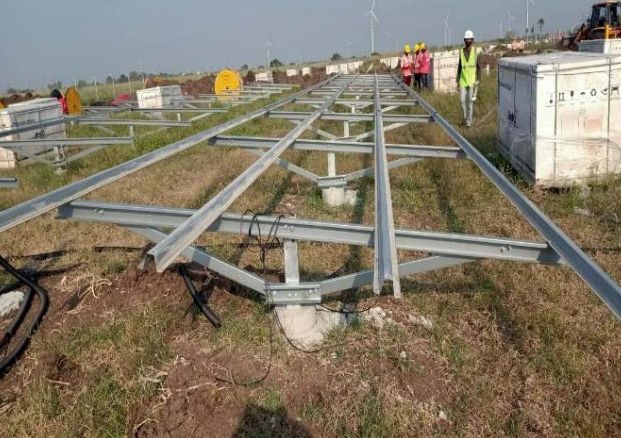

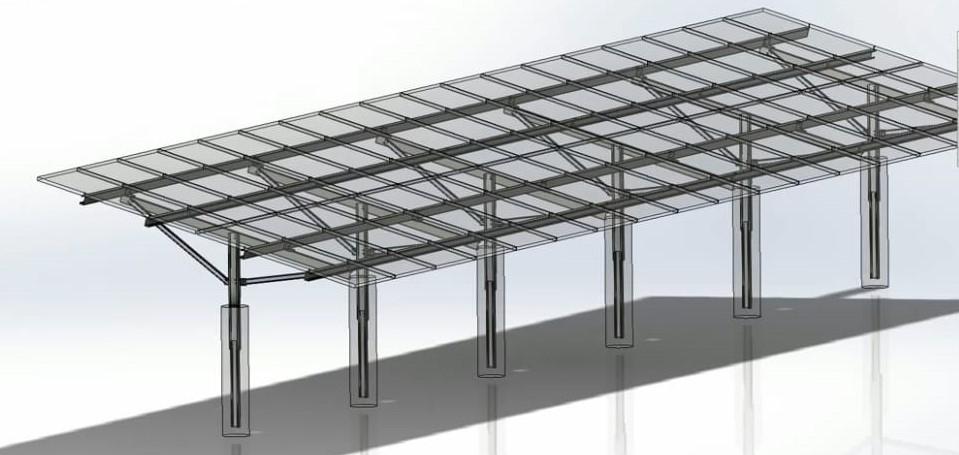

Solar Mounting Structures by BRPL
Designed with precision engineering and manufactured to meet global quality standards, these mounting structures provide:
Strength and durability to withstand extreme weather conditions
Ease of installation for faster project turnaround
Cost-effective solutions suitable for both large and small-scale solar projects
With this addition, Bansal Roofing Products Limited (BRPL) expands its portfolio to support the growing renewable energy sector — offering sustainable solutions for a greener tomorrow.
